CELESTRON C6-N/NGT, C8-N/NGT, C10-N/NGT NEWTONIAN

We offer knobs for the Celestron 6”, 8”, and 10” Newtonian (N) and Newtonian Go-To (NGT) primary and secondary. Select the type of knobs for your telescope from the list below. Price is for a complete set of knobs.

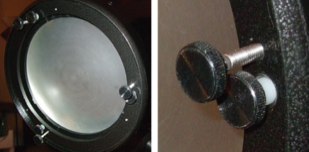

A. Knobs for Celestron C6-N/NGT, C8-N/NGT, and C10-N/NGT Primary

Part: SWpri
Fits: Celestron C6-N/NGT, C8-N/NGT, and C10-N/NGT Newtonian telescopes.

Primary collimation
  • Knobs: Black plastic, 16 mm (5/8”) diameter
  • Threads: Stainless steel
Primary Lock
  • Knobs: Red plastic, 16 mm (5/8”) diameter
  • Threads: Stainless steel
Notes:
  1. If your telescope already has factory knobs, these knobs will not fit.
  2. The telescope optical tube assembly will clear the Dobsonian rocker box with primary knobs installed.

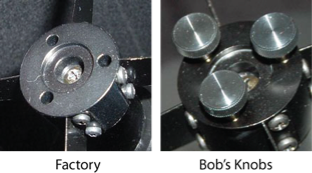

  3. Knobs with shorter screws and spacers replace the factory flathead Phillips collimation screws. Knobs with longer screws replace the factory set-style (grub) locking screws.
  4. Since the factory collimation and locking screws are close together, knobs must be staggered in height. The locking knobs protrude further than the collimation knobs, and they are now red in color.
  5. Some telescopes have a cover over the primary collimation screws. This cover must be removed and set aside when Bob’s Knobs are installed.
  6. Protect the locking knobs from damage, and do not support the OTA using the locking knobs as feet.

$27.95


_______________________________

B. Knobs for Celestron C6-N/NGT, C8-N/NGT, and C10-N/NGT Secondary

Part: CNsec30 or CNsec35
Fits: Celestron C6-N/NGT, C8-N/NGT, and C10-N/NGT Newtonian telescopes.

Knobs: Black plastic, 13 mm (1/2”) diameter
Threads: Stainless steel

Notes:
  1. We offer knobs with screws having either 30 mm or 35 mm length. Order knobs with a screw length sufficient to allow the knobs to clear the secondary housing.

$22.95

Screw length
